Dettagli del prodotto
Luogo di origine: Cina
Marca: SHANAN
Certificazione: CE, ISO
Numero di modello: SAMD-500
Documento: Metal Detector.pdf
Termini di trasporto & di pagamento
Quantità di ordine minimo: 1 set
Prezzo: Negoziabile
Imballaggi particolari: scatola
Tempi di consegna: 15 giorni di lavoro
Termini di pagamento: T/t
Capacità di alimentazione: 100 set/mese
Materiale: |
acciaio inossidabile |
Linea di produzione di collegamento: |
Supporto |
Rifiuto facoltativo: |
Spingere l'asta e la caduta di lembo |
Opzionale: |
Scegliere digitale o analogico |
Cintura del trasportatore: |
Trasportatore a catena modulare |
Struttura della macchina: |
Struttura piena prende inossidabile 304 |
Garanzia: |
12 mesi di garanzia |
Dimensione del tunnel: |
500 mm ((W) * 120 mm ((H) |
Certificazione: |
CE |
da: |
Cina |
Materiale: |
acciaio inossidabile |
Linea di produzione di collegamento: |
Supporto |
Rifiuto facoltativo: |
Spingere l'asta e la caduta di lembo |
Opzionale: |
Scegliere digitale o analogico |
Cintura del trasportatore: |
Trasportatore a catena modulare |
Struttura della macchina: |
Struttura piena prende inossidabile 304 |
Garanzia: |
12 mesi di garanzia |
Dimensione del tunnel: |
500 mm ((W) * 120 mm ((H) |
Certificazione: |
CE |
da: |
Cina |

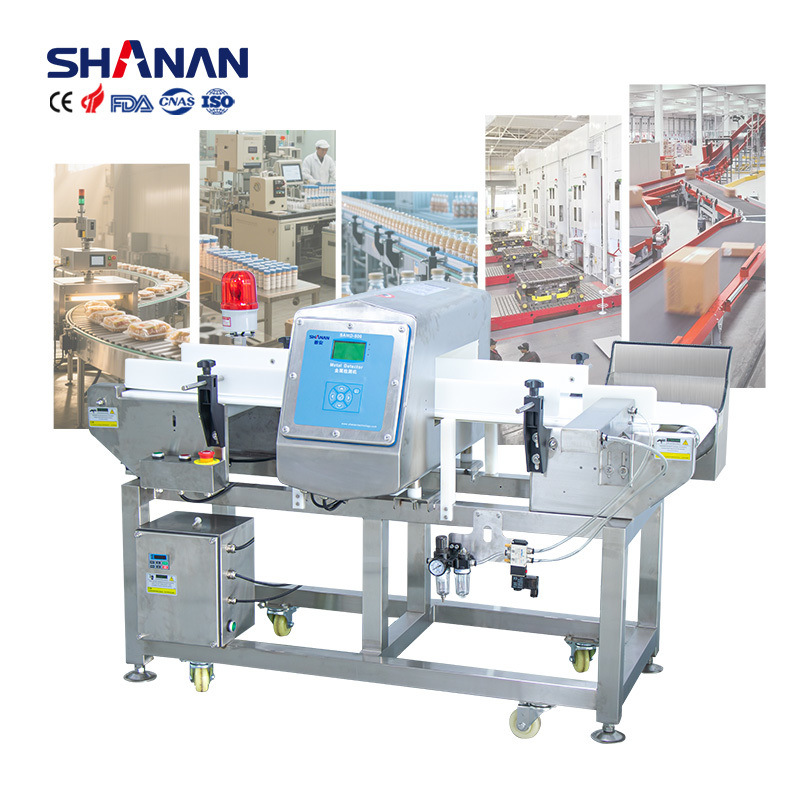

In stock Digital Conveyor Metal Detector Food Safety / Medicine / Apparel Industry conveyor belt
High Precision Automatic Food Metal Detector Imported New Upgraded Food Metal Detection Equipment Needle Metal Detector
Metal detector can be used in food, pharmaceutical, chemical,textile and garment, toy industry and so on, which is authorized by HACCP(food industry), GMP(pharmaceutical industry), and it can be applied for cookies, sauces, dumpling, hum, soup, candy, meat, frozen food, salted food, fast food, bakery etc, and other industries that have special requirements on detection sensitivity, anti-interference, waterproof. Besides, it can detect broken needles, metals mixed with products.
Features:
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large D display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
Application:
Specification:
Model | SAMD-500 | ||||||
Detected products Height | 80 | 120 | 80 | 100 | 120 | 150 | 200 |
Detected products Width | 300 | 300 | 400 | 400 | 400 | 400 | 400 |
Belt Width | 250 | 250 | 350 | 350 | 350 | 350 | 350 |
Belt length | 1500 | ||||||
Detector sensitivity |
Feф0.5 | FeФ0.8 | FeФ0.6 | FeФ0.7 | FeФ0.8 | FeФ0.8 | FeФ1.0 |
SUSф1.0 | SUSФ1.5 | SUSФ1.0 | SUSФ1.2 | SUSФ1.5 | SUSФ2.0 | SUSФ2.3 | |
N-Feф0.8 | N-FeФ1.0 | N-FeФ0.8 | N-FeФ1.0 | N-FeФ1.2 | N-FeФ1.5 | N-FeФ1.5 | |
Speed of belt | 27M/min (can adjust 5-40 M/min) | ||||||
Load ability | 20KG | ||||||
Count | 100 | ||||||
Reject Ways | Sound and light alarm with belt stoped ;(when has auto-reject system ,belt continue and rejecting the goods ) | ||||||
Application | Non-package ,plastic package ,paper bag or box (non-metallic) product | ||||||
Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% |
Company information:
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
