Name: Food grade Quality easy-to-use conveyor belt Metal Detector with rejection CE ISO certified
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-990
Price: 4,400.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: SHANAN

Certificazione: CE, ISO

Numero di modello: SA-990

Termini di trasporto & di pagamento

Quantità di ordine minimo: 1 set

Prezzo: Negoziabile

Imballaggi particolari: SCATOLA

Tempi di consegna: 15 giorni di lavoro

Termini di pagamento: T/t

Capacità di alimentazione: 100 set/mese

Ottenga il migliore prezzo

Dettagli del prodotto

Descrizione di prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                food grade metal detector with rejection, CE certified conveyor belt metal detector, ISO certified food metal detector


Nome prodotto:	Metal detector di industria alimentare	Applicazione:	Industria sanitaria
Materiale:	304 acciaio inossidabile	Lingua:	Cinese, inglese, gli Spagnoli, lingua può essere personalizzato
Pannello di Oprate:	Touch screen	Altezza del tunnel:	400 mm
velocità di trasporto:	18-36m/min	Larghezza del tunnel:	150 mm
Sensibilità:	Alta sensibilità, Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm, 0.8mm ferrosi	Allarme:	Fermata automatica, suono e lampada leggera dell'allarme o su misura
Tempo di servizio:	per tutta la vita	Peso:	150-200kg
Garanzia:	1 anno

Nome prodotto:	Metal detector di industria alimentare
Applicazione:	Industria sanitaria
Materiale:	304 acciaio inossidabile
Lingua:	Cinese, inglese, gli Spagnoli, lingua può essere personalizzato
Pannello di Oprate:	Touch screen
Altezza del tunnel:	400 mm
velocità di trasporto:	18-36m/min
Larghezza del tunnel:	150 mm
Sensibilità:	Alta sensibilità, Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm, 0.8mm ferrosi
Allarme:	Fermata automatica, suono e lampada leggera dell'allarme o su misura
Tempo di servizio:	per tutta la vita
Peso:	150-200kg
Garanzia:	1 anno

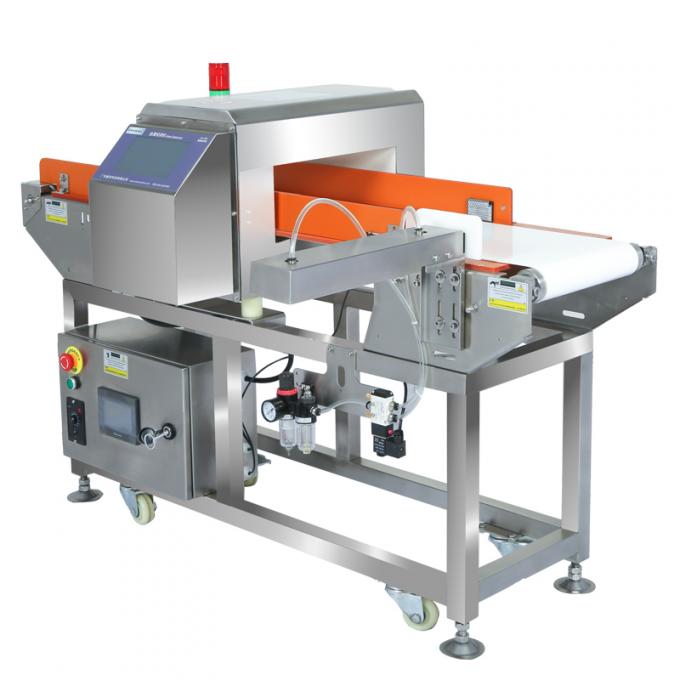

Food grade Quality easy-to-use conveyor belt Metal Detector with rejection CE ISO certified

Bakery

Bakery encompasses many different flour-based products, which include fresh and frozen bread and rolls, semi-baked goods, croissants, cakes, pastries, doughnuts, pancakes, and dough. It also includes biscuits, cookies, crackers, tarts, and fruit pies.

Challenges in the Bakery Sector

Some challenges found within the bakery sector include:

Large amount of processing and production of the food product, which increase the chance of stainless steel contamination caused by processing and packaging machine failure
Warm and dusty environments and the need for regular cleaning of machines, conveyors and belts
Integrity of products after baking process (i.e. looking for holes within baked bread) or missing items (i.e. packets of cookies)
Increase in private label manufacture, requiring food manufacturers to be serving multiple retailers with multiple products

Faster, Better Auto-Learn

With significant improvements in signal processing, the new Auto-Learn rapidly delivers excellent detection sensitivities out of the box and provides more line uptime than ever before.

Variable Frequency Provides the Best Detection Levels

By using SHANAN's revolutionary Variable Frequency technology that allows detection levels to be optimized around a wide range of differing product conditions, including whether they are wet or dry.

Parameter:

Pass width (mm)		400				Custom non-standard
Pass height (mm)		80	120	150	180	200	250	300	350	400
Standard detection sensitivity	FE(Φmm)	0.5	0.6	0.7	0.8	1.0	1.2	1.5	2.0	2.5
	NON-FE(Φmm)	0.8	1.0	1.2	1.5	2.0	2.5	3.0	3.5	4.0
	SUS304(Φmm)	1.0	1.2	1.5	2.0	2.5	3.0	3.5	4.0	4.5
Belt width(mm)		370	370	370	370	470	470	470	470	470
Conveyor length(mm)		1330	1330	1330	1330	1700	1700	1700	1700	1700
Height of from the belt to ground(mm)		650±50 can be customized
Protection level		IP66
Number of memory products		100kinds
Display method		LED D (or custom touch screen)
Operation method		Touch key input (touch optional)
Material of conveyor belt		Food grade plate chain
Alarm method		alarm shutdown, buzzer alarm or rejection mechanism optional
Belt speed		28m / min constant (variable speeds for different varieties, if you need to adjust the speed, you can customize the frequency conversion)
Machine material		The whole rack is made of SUS304 food grade stainless steel, which complies with HACCP, GMP, CAS and other standards
Mechanical size (mm)		1330 × 980× 1100 (length × width × height) non-standard can be customized
Machine weight		About 300KG

Model		SA-990
Machine length (mm)		1330~2000 (can customize)
Detection tunnel width (mm)		200~1200 (can customize)
Detection tunnel height (mm)		50~1000 (can customize)
Standard detection sensitivity	FE(Φmm)	≥0.5
	NON-FE(Φmm)	≥0.8
	SUS304(Φmm)	≥1.0
Protection level		IP67
Number of memory products		200+ kinds
Display mode		Touch Screen
Operation mode		Touch button input
Alarm mode		Alarm stop, buzzer alarm or rejector device optional
Machine material		Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other standards
Conveyor belt material		Food grade PVC or PU belt
Machine weight		About 280KG
Motor		90~370W
Transfer speed		10-28m/min (optional and adjustable)
Power supply		AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
Belt height above the ground (mm)		700+100 (can customized)
Maximum load (single piece)		10~50KG (can customized)
Using environment		Temperature: -15℃~40℃, relative humidity: 30~85RP
